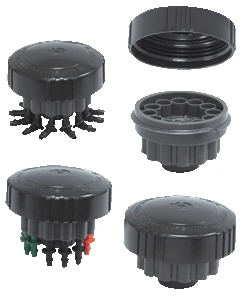

The TOP concept from DIG Corp. is designed for first time installations or retrofitting an existing sprinkler riser into an efficient 12-outlet drip irrigation system. The TOP concept utilizes unique self-cleaning, pressure compensating emitters enabling long runs with even water distribution from all outlets.
Features:
- 12 individually pressure compensating, self flushing emitters allow easy passage of water and minimize clogging
- Flow rates: .6, 1, 2.2 and 3.3 GPH (2.2, 4, 8.3 and 12.5 l/h)
- Pressure compensating range: 8-80 PSI (.5-5.6 BAR)
- Interchangeable emitters for variable flow rates in a single head
- Color-coded emitters and barbs easily identify flow rate at each zone
- Each emitter individually filtered (approximately 80 Mesh)
- Backup mini-disk filter
- Rugged materials to withstand the most adverse conditions
- Install above grade or place below grade in a 6" emitter box
- Inlet plugs provide closure options for up to eight emitters
Specifications:
- Flow Rates: .6-33 GPH (2.2-12.5 l/h)
- Operating Pressure: 15-50 PSI (1-3 BAR)
- Inlet Size: 1/2" FNPT
- Use with 1/8" (.187 OD) or 1/4" (.150-.160 ID) Distribution Tubing
- TOP Kits Contain 100' of 1/8" Distribution Tubing, Accessories and Stakes
- 1/4" Converter Elbow and Barb Allow The Use of 1/4" Distribution Tubing
- Filter Requirement: 120 Mesh
